Bipolar Junction Transistor (BJT)

• A three-terminal semiconductor device that uses a small electrical current at its base to control a much larger current flowing through its other terminals.
• Use as Switches, Amplifier

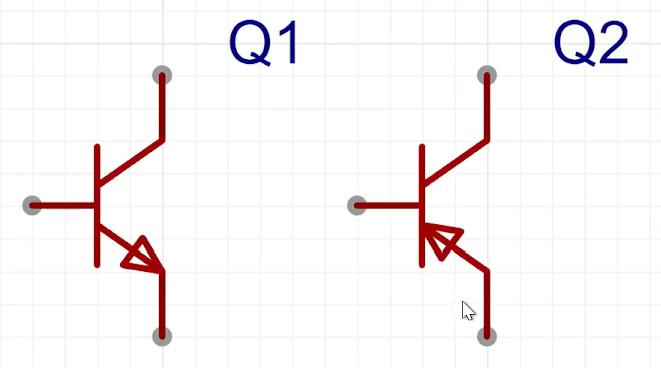

• 2 Types: PNP, NPN

• Arrow points out: NPN
• Arrow points in: PNP
