DDL - Data Types in MySQL

Data types in MySQL can be catogorised in 3 main category:

• Numeric
• String
• Date and Time

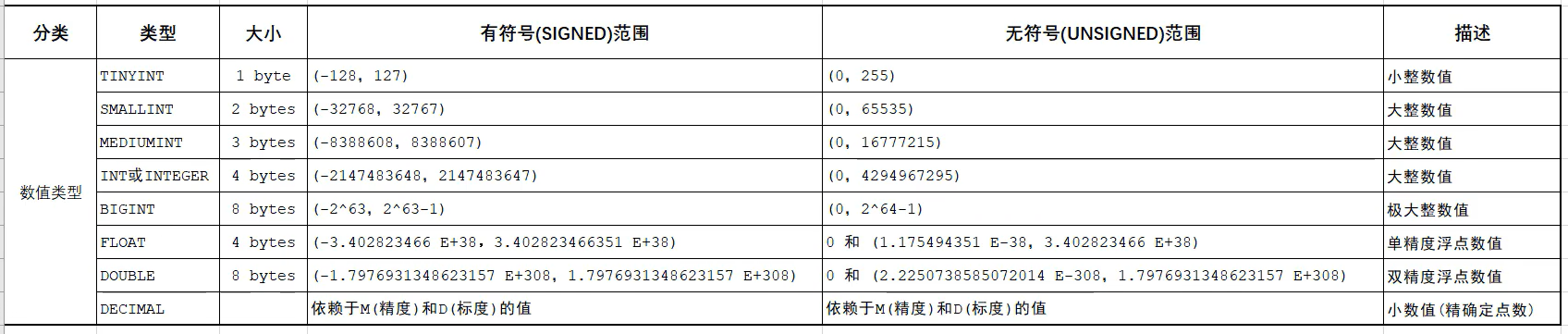

Numeric

• For DECIMAL,

123.45

• M means it has 5 digit.
• D means it has 2 decimal places.

Usage with select correct data types

1. Age

For example age we can use INT as our data type. However there is another better option of data types.

-> TINYINT with UNSIGNED can be the best choice.

Because,

• Age only exist in positive value only
• The maximum value of UNSIGNED TINYINT is 255, which is already enough if storing age data.

age TINYINT UNSIGNED

2. Marks

• The marks usually written in dd.d %
• So it only required 1 decimal places.

marks DOUBLE(4, 1)

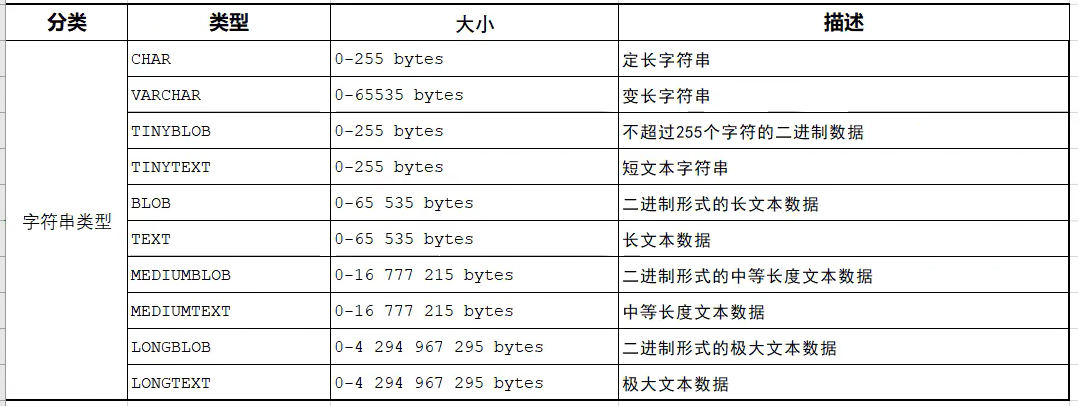

String

Usage

CHAR()

name CHAR(10);

• It means that it only can store maximum 10 letter.
• If we only store 1 text, it also use up the space of 10 text.
• If the number of text is less then the maximum value, it will fill up with space.
• It gives the best performance.

VARCHAR()

name VARCHAR(10);

• For VARCHAR(10), when we only store 1 text, it only use 1 space only.
• It use the space based on the number of letter.
• It has lower performance than CHAR(), as it required to calculate the space needed based on the number of letter.

Choice of VARCHAR() and CHAR() based on the condition

1. Username

• It's better to use VARCHAR().
• Because the username has no fixed length.

2. Gender

• It's better to use CHAR().
• It only have 2 options.
• Can use combination of F / M or B / G to represents.

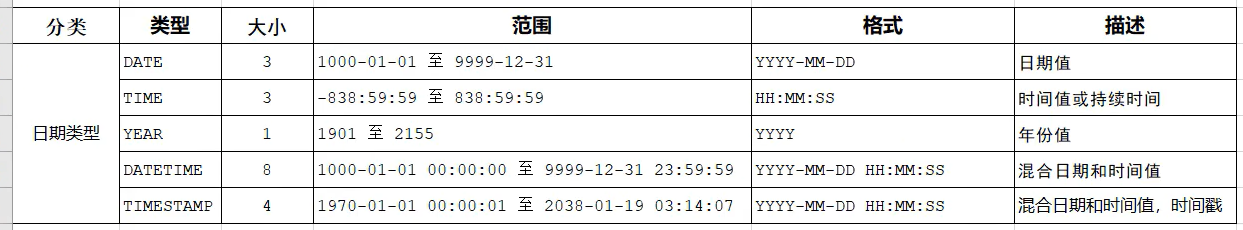

Date and Time

• We usually use DATE, TIME and DATETIME most of the cases.

Usage

Birthday

• For birthday we usually use DATE as a data type.
• Because we don't need the precise time for a birthday.

Comprehensive Instance

Design a worker database table.

• It has Number of record (Only number)
• Worker ID (Combination of text and number, Max: 10)
• Name (Max: 50)
• Gender (Max: 1, Use G / B to represents)
• Age (Cannot be negative value)
• Join Date (Date only)

Example

mysql> CREATE TABLE IF NOT EXISTS worker (
    -> ID INT,
    -> WORKER_ID VARCHAR(10),
    -> WORKER_NAME VARCHAR(50),
    -> GENDER CHAR(1),
    -> AGE TINYINT UNSIGNED,
    -> JOIN_DATE DATE
    -> );

Output and validate

Output:

Query OK, 0 rows affected (0.04 sec)

Validation:

mysql> show tables;
+----------------+
| Tables_in_test |
+----------------+
| student        |
| worker         |
+----------------+
2 rows in set (0.00 sec)

mysql> desc worker;
+-------------+------------------+------+-----+---------+-------+
| Field       | Type             | Null | Key | Default | Extra |
+-------------+------------------+------+-----+---------+-------+
| ID          | int              | YES  |     | NULL    |       |
| WORKER_ID   | varchar(10)      | YES  |     | NULL    |       |
| WORKER_NAME | varchar(50)      | YES  |     | NULL    |       |
| GENDER      | char(1)          | YES  |     | NULL    |       |
| AGE         | tinyint unsigned | YES  |     | NULL    |       |
| JOIN_DATE   | date             | YES  |     | NULL    |       |
+-------------+------------------+------+-----+---------+-------+
6 rows in set (0.00 sec)
